Lupine SL Nano AF Headlight Set with 5.0 Ah Battery

Extremely compact, lightweight and very powerful: The SL Nano AF front light from Lupine comes in a complete set with handlebar bracket, 5.0 Ah battery, charger and Bluetooth remote control. The front light impresses with its exceptionally uniform light pattern and impressive brightness.

This is made possible by a high-precision, specially developed lens technology that ensures a homogeneous light distribution that is unrivalled in this size class. In addition to the 700 lux low beam, the front light has a switchable high beam that can be operated using the wireless Bluetooth handlebar switch. When activated, it provides up to 1200 lumens. This is bright enough to see far ahead even on dark country roads and fast descents. But the bike light can also prove useful during the day: Daytime running lights can be activated if needed to increase your visibility in road traffic. The powerful yet lightweight SmartCore battery supplies your Lupine rechargeable headlamp with the energy it needs reliably and for a long time.

The Lupine SL Nano AF thus combines a compact design, smart technology and impressive light output in a convincing overall package.

Details SL Nano AF headlight:
• Comprehensive headlight set
• Including 5.0 Ah battery, charger and Bluetooth remote control
• Homogeneous and wide low beam with up to 700 lumens
• Specially developed lens technology for uniform light distribution (biconical TIR lens)
• High beam can be switched on with up to 1200 lumens
• Daytime running light for increased visibility (can be switched off)
• Bluetooth handlebar switch enables the light modes to be switched
• Automatic switching between dipped beam and daytime running light
• Up to 17.5 hours burn ime possible (5.0 Ah battery)
• Eco mode with reduced power can be activated (configurable via remote control)
• CNC-machined aluminium housing for excellent cooling and high durability
• Incl. Lightcase L storage bag
• Made in Germany
• According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Details 5.0 Ah SmartCore battery:
• Rechargeable battery for operating all Lupine rechargeable lamps (except Lupine Alpha helmet lamp)
• Acoustic and visual LED capacity display at the touch of a button
• Permanent light (2 x pressing the button) and running light (3 x pressing the button) can be activated
• Low battery capacity warning (three-stage)
• Frame fastening with non-slip Velcro straps in two lengths
• Easy charging with the charger included

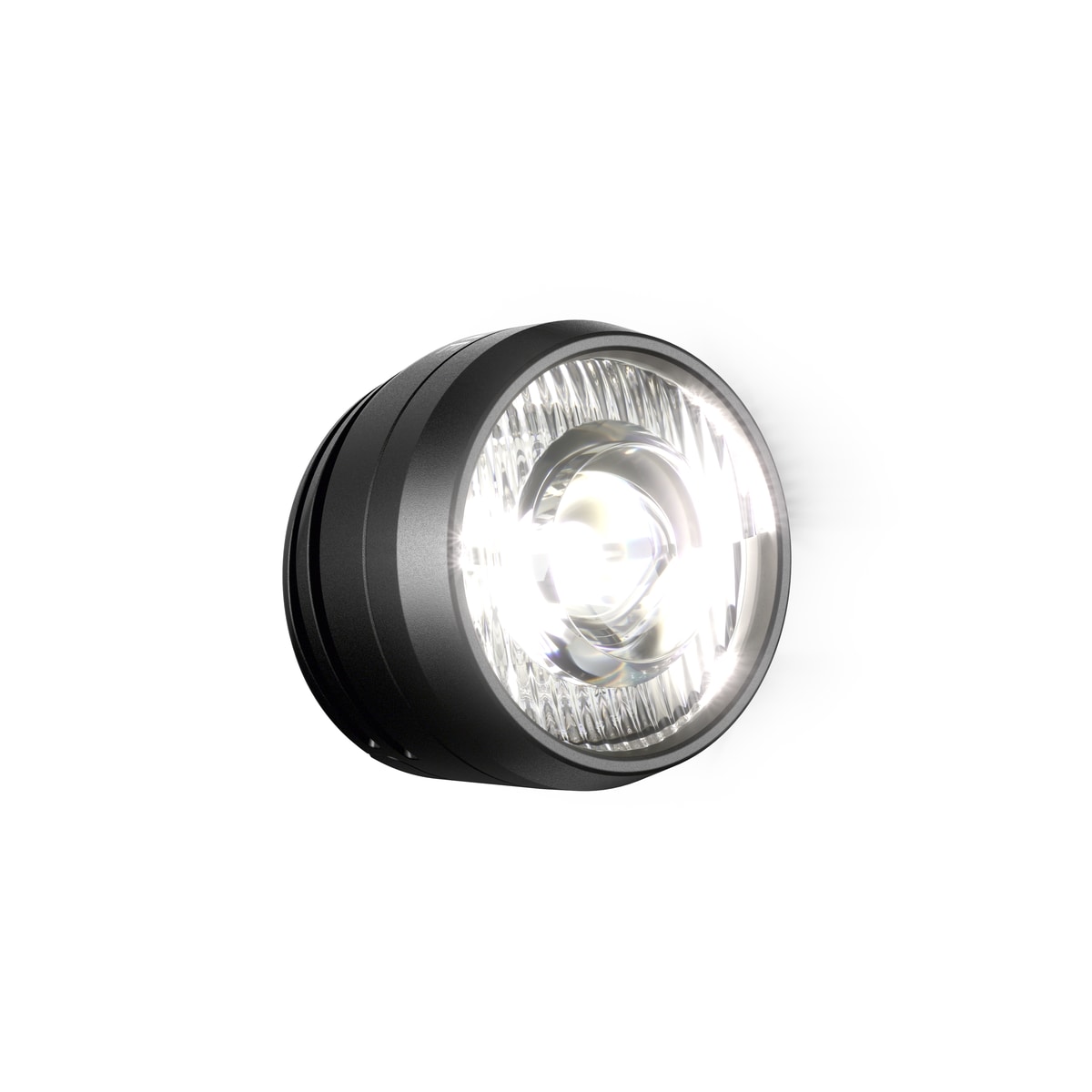

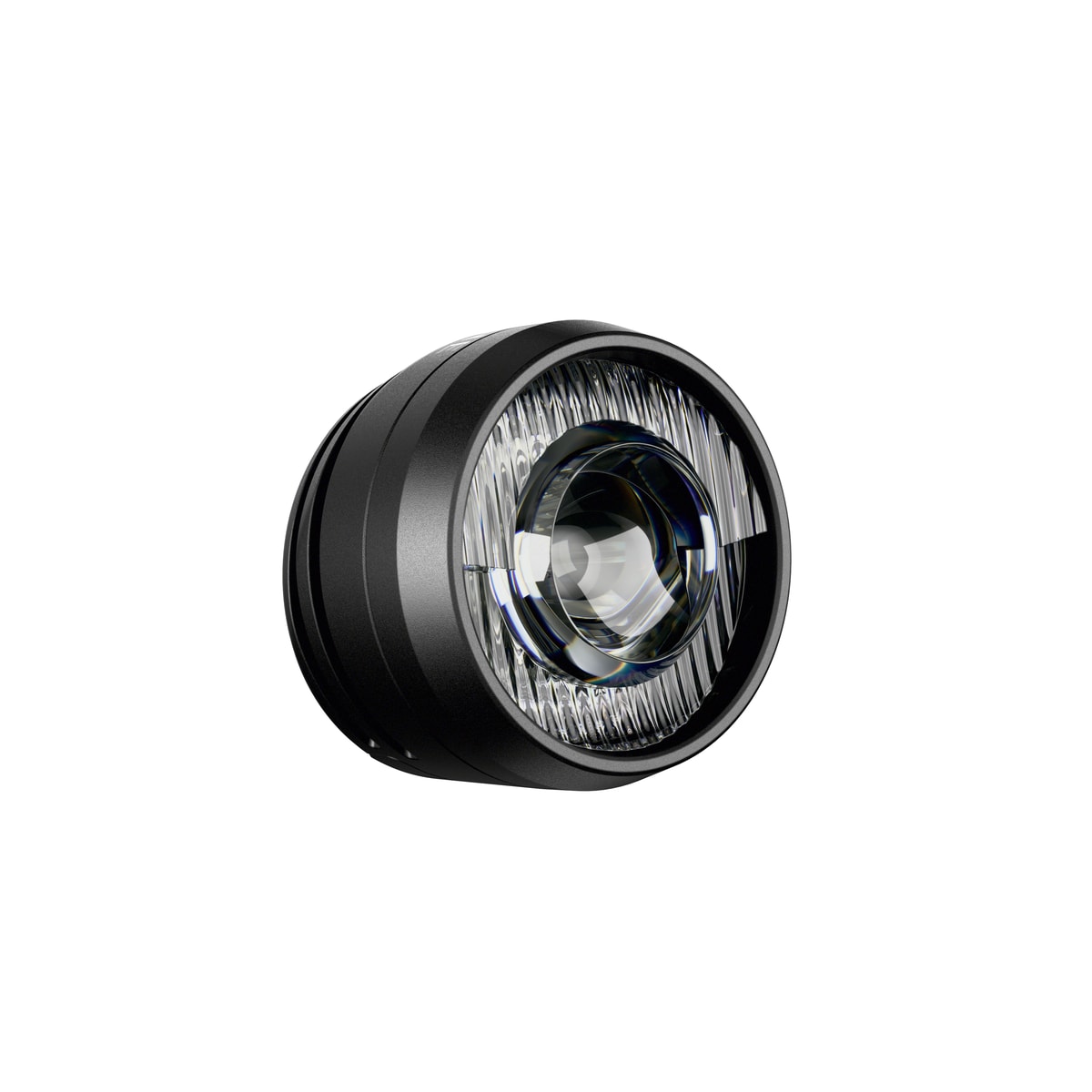

Technical details SL Nano AF headlamp:
• Material: aluminium, plastic
• Installation: Handlebar mount (for Ø 31.8 clamp diameter)
• Clamp diameter handlebar switch: Ø 22.2 mm
• Lamp: LED
• Lighting power: up to 140 lux
• Luminous flux: up to 700 lumens (low beam), up to 1200 lumens (high beam)
• Power consumption (factory setting): 14 W (high beam), 8 W (low beam), 2 W (daytime running light)
• Power consumption (Eco mode): 8 W (high beam), 5 W (low beam), 2 W (daytime running light)
• Light modes: low beam, high beam, daytime running light
• Burn time 5.0 Ah Lupine battery: approx. 2.5 h (min.), approx. 17.5 h (max.)
• Dust- and waterproof in accordance with IP67
• Dimensions: approx. Ø 30 x 41 x 41 mm
• Weight: approx. 52 g (lamp head only)

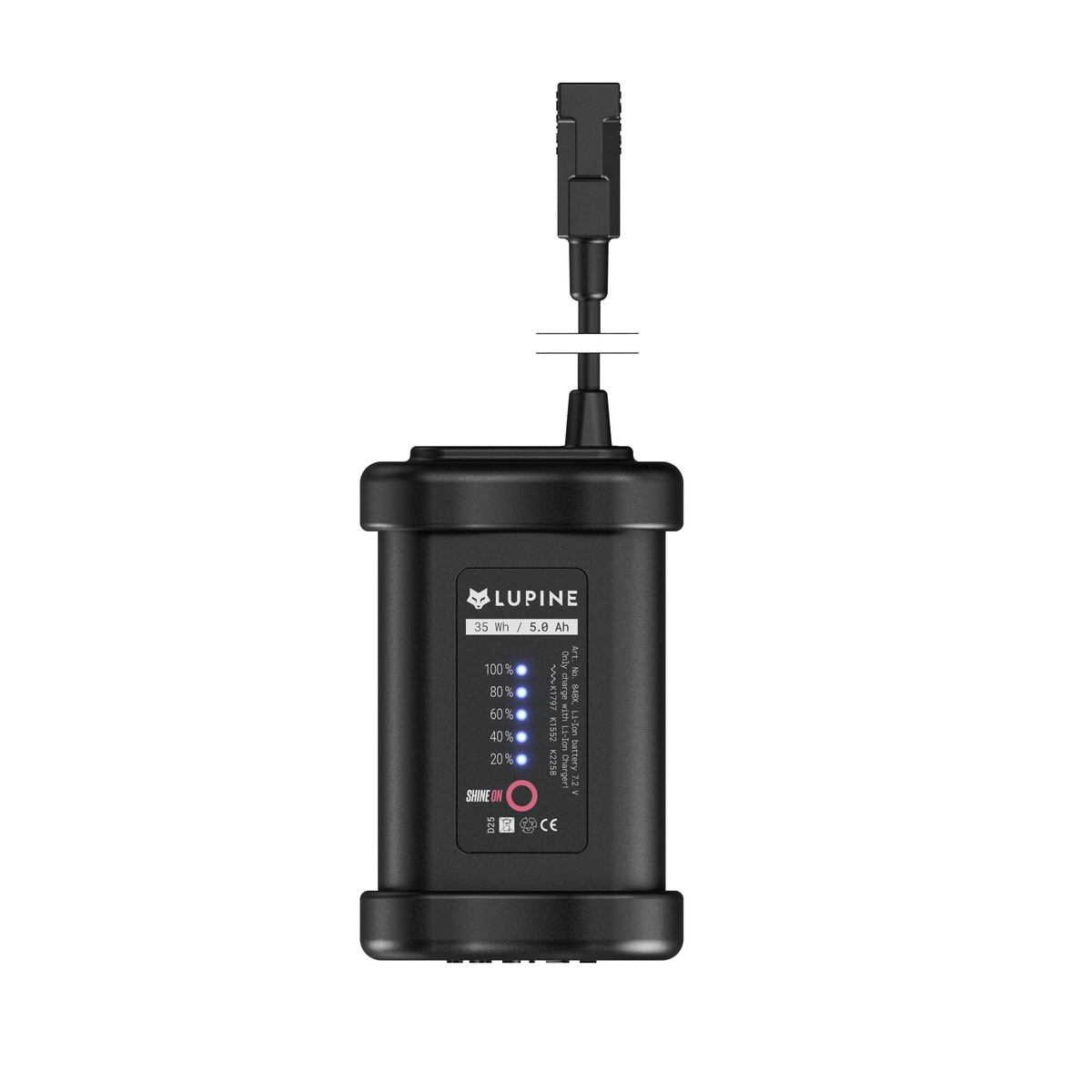

Technical details 5.0 Ah SmartCore battery:
• Battery: Li-Ion (7.2 V)
• Battery capacity: 5.0 Ah / 35 Wh
• Length of connection cable: approx. 12 cm
• Length of Velcro straps: approx. 21 cm (short), approx. 30 cm (long)
• Dimensions: approx. 82 x 51 x 32 mm
• Weight: approx. 190 g

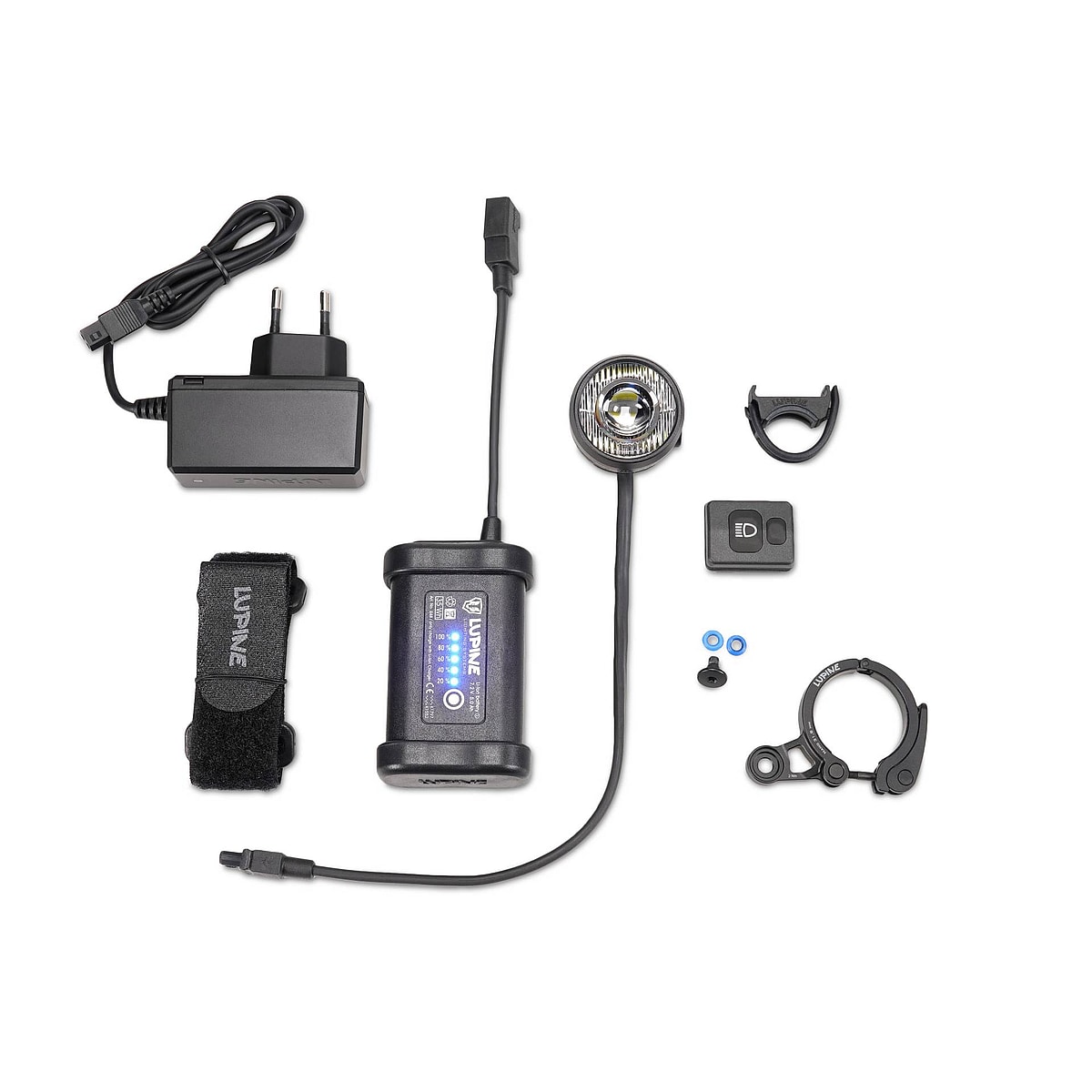

In the box:
Headlight set consisting of:
• 1 Lupine SL Nano AF lamp head
• 1 Lupine SL Bluetooth remote control incl. CR2032

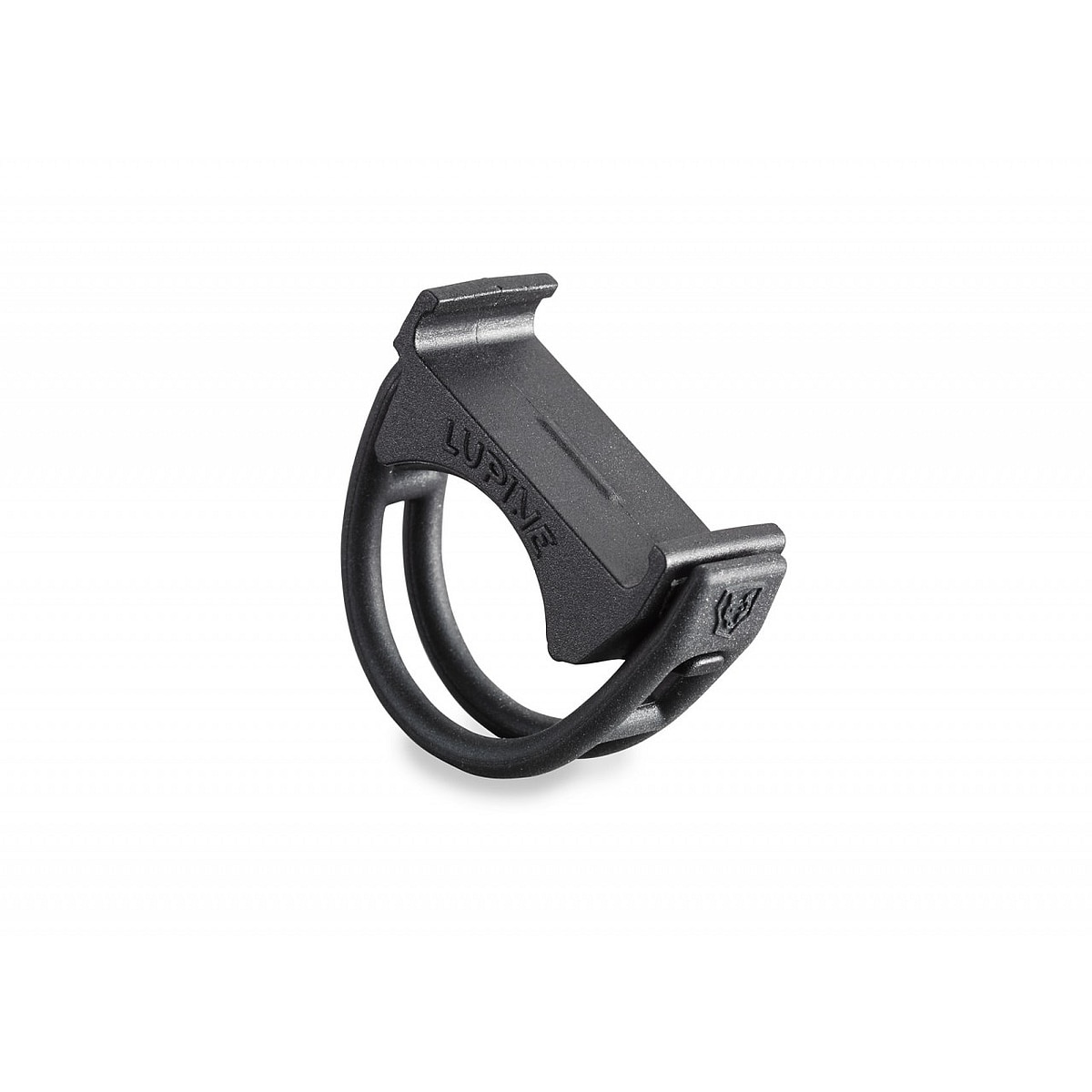

• 1 Lupine SL Nano AF quick release lamp holder
• 1 mounting bolt
• 2 O-rings
• 1 Lupine 5.0 Ah SmartCore battery
• 1 long Velcro
• 1 short Velcro

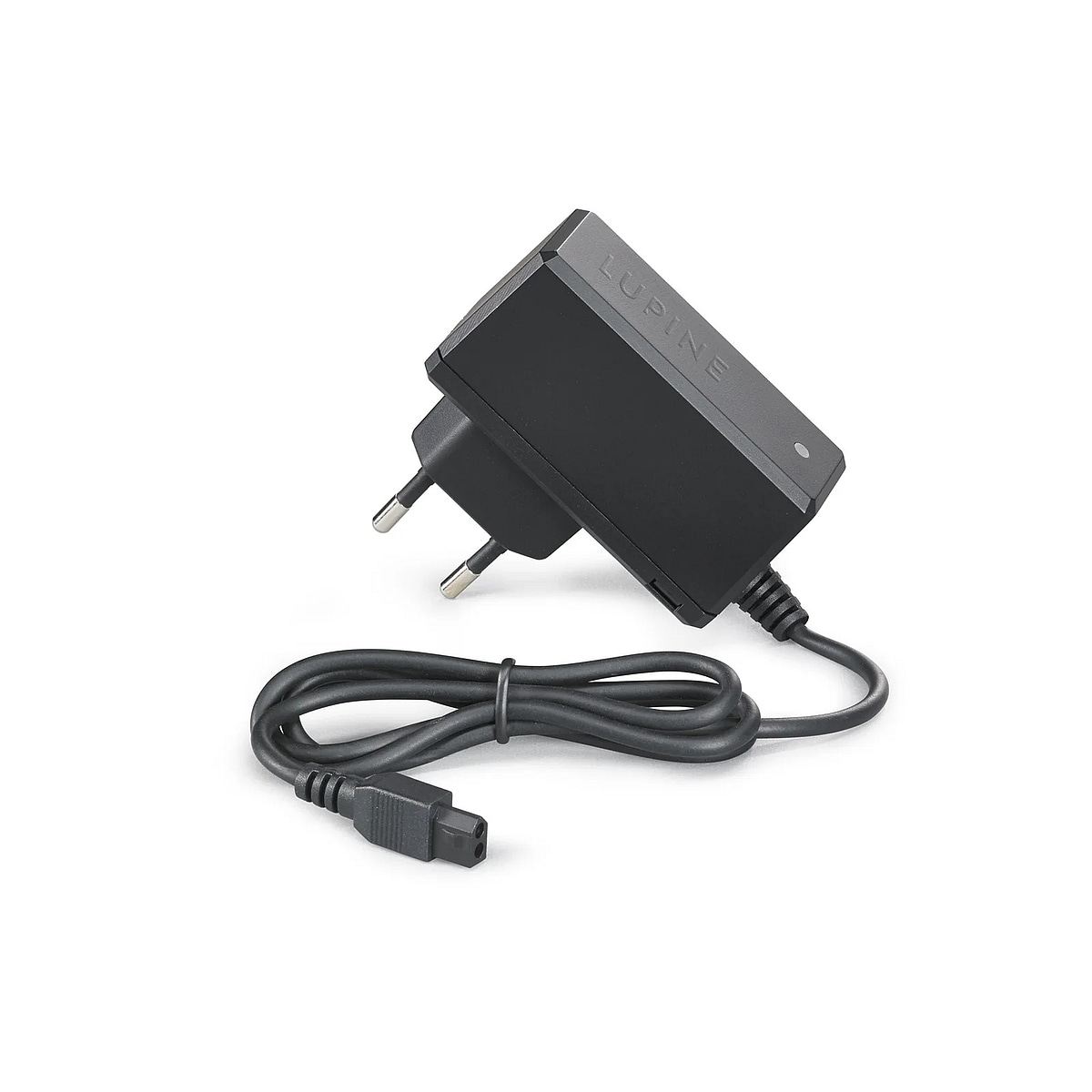

• 1 Lupine Wiesel V6 charger
• 1 Lupine Lightcase L storage bag


Lupine individual components in the ROSE range:
• Lupine SL Nano/AF GoPro adapter (prod. code: 1627770001)
• Lupine SL Bluetooth remote control (prod. code: 1627830001)
• Lupine BT remote control holder (prod. code: 1629770001)
• Lupine BT remote control holder XL (prod. code: 1629780001)
• Lupine holder SL Nano AF quick release Ø 31.8 mm (prod. code: 1633320001)
• Lupine 5.0 Ah SmartCore battery (prod. code: 1628030001)
• Lupine 6.9 Ah SmartCore battery (prod. code: 1628040001)

Matching Lupine battery-powered rear lights at ROSE:
• Lupine C14 Mag rechargeable rear light (prod. code: 1627570001)
• Lupine red light rechargeable rear light (prod. code: 1627580001)

Manufacturer: Lupine Lighting Systems GmbH, Im Zwiesel 9, 92318 Neumarkt, Germany, www.lupine.de
